Twin Screw Barrel Replacement: 8 Details to Confirm

• Twin Screw Barrel Replacement: 8 Details to Confirm

  A replacement twin screw barrel can match the old diameter and still fail on the machine. Center distance, rotation direction, gearbox connection, port positions and the material being processed all affect whether the new set will fit and run correctly. Before ordering a twin screw barrel, confirm the following eight details. PIPLL uses this twin screw barrel replacement checklist to confirm the machine and process before manufacturing begins.

  This check is especially important when the original drawing is missing, the worn parts have already lost their original dimensions, or the extruder has been modified during its service life.



  1. What Does the Extruder Produce?

  Start with the final product and formulation, not only the machine name. PVC pipe, WPC profile, filled masterbatch and recycled pellets create different conveying, mixing, shear and wear conditions. The correct replacement should restore the original process—or deliberately improve it when the old design has a known problem.

  • ● Final product: pipe, profile, sheet, pellet, compound or another application
  • ● Base resin and important additives
  • ● Filler or reinforcement type and percentage
  • ● Normal output, screw speed and operating temperature

  For a compounding line, the information required may differ from a conventional PVC production line. For each twin screw barrel replacement, PIPLL reviews the actual formulation and operating conditions before recommending a configuration. See the plastic compounding twin screw barrel reference for application context.

  2. Co-Rotating or Counter-Rotating?

  Rotation direction cannot be guessed from screw diameter. Co-rotating screws turn in the same direction and are commonly selected for intensive mixing and compounding. Counter-rotating screws turn in opposite directions and are frequently used for controlled conveying of heat-sensitive formulations such as rigid PVC.

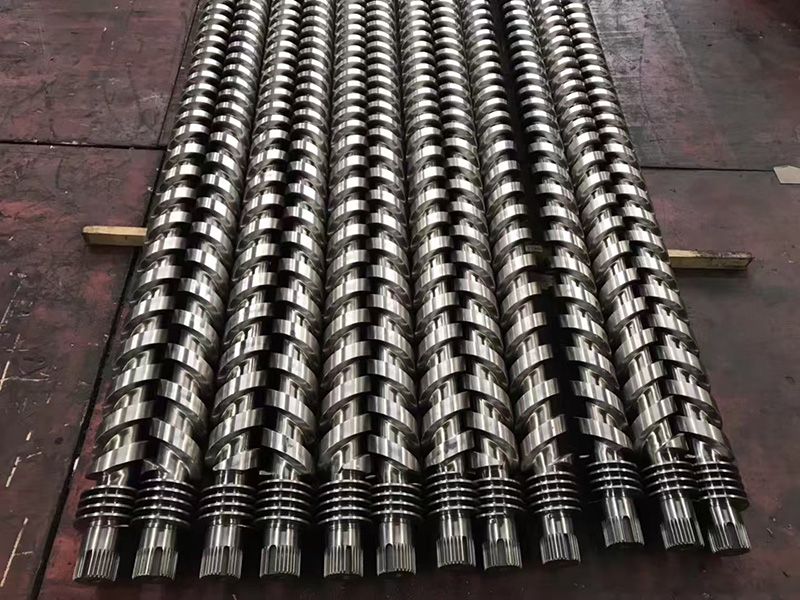

  Confirm the direction from the machine manual, gearbox output or an assembly record. Also confirm the screw hand and meshing relationship. A quotation should not proceed while any of these items remain uncertain.



  3. Parallel or Conical?

  Parallel screws maintain the same diameter and center distance along their length. Conical screws taper from a larger feed end toward a smaller discharge end. The two systems may serve similar products, but their geometry, gearbox arrangement and measurements are not interchangeable.

  If the screw pair is tapered, compare the machine with the available conical twin screw barrel configurations. For either type, record the diameter or diameters, center distance, working length and overall length. A twin screw barrel replacement cannot be specified reliably without these geometry records.

  4. Machine and Gearbox Identification

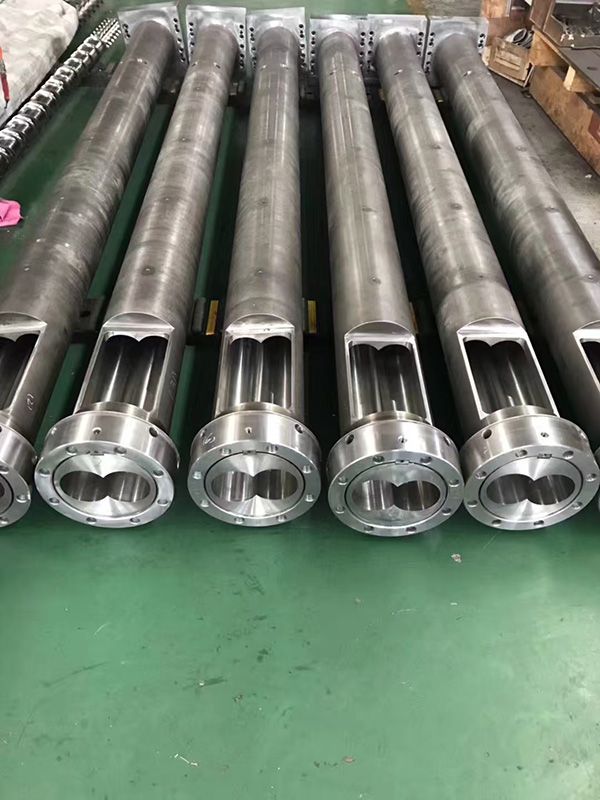

  The machine brand and model are useful reference points, but they are not a complete specification. Machines with the same model designation may have different production years, gearboxes or locally modified connections. Send clear photos of the nameplate, gearbox output and installed assembly. PIPLL uses these references to check whether a twin screw barrel replacement will match the installed drive connection.

  • ● Extruder manufacturer, model and manufacturing year
  • ● Serial number or gearbox identification
  • ● Spline, keyway, coupling and thrust-end details
  • ● Any history of rebuilding or local modification



  5. Critical Dimensions and Port Positions

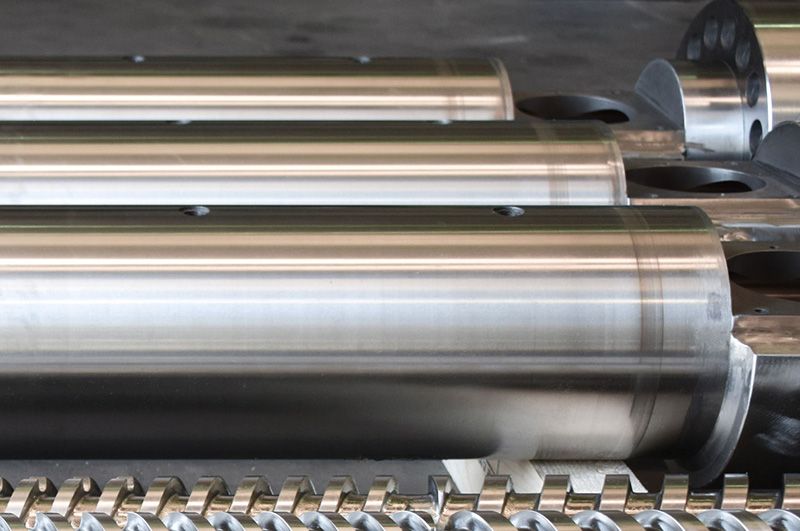

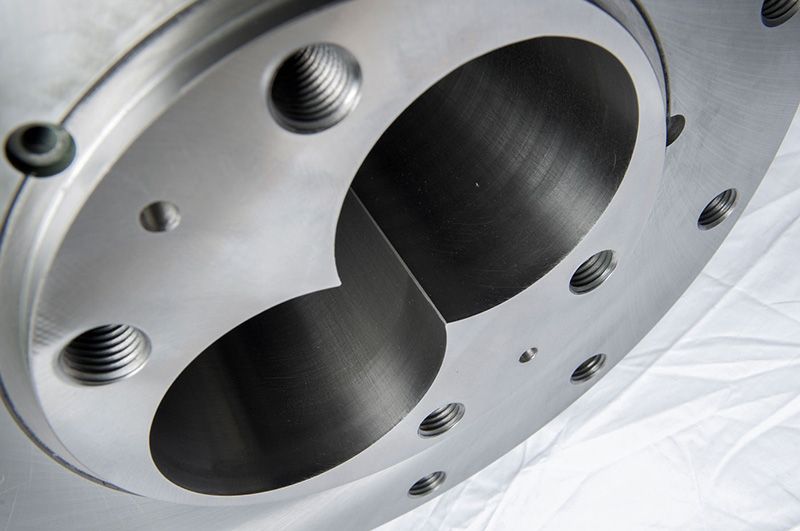

  Do not send only the outside diameter and total length. The replacement must align with the gearbox, heaters, cooling system, feed throat, venting points and downstream equipment. An error in one interface can prevent installation even when the main body dimensions are correct. This is why a PIPLL twin screw barrel replacement review includes ports, flanges and connection details as well as the barrel body.

  Area	What to confirm	Why it matters
  Screw pair	Diameter, center distance, working length and L/D	Controls fit and processing geometry
  Drive end	Spline, keyway, coupling and thrust face	Connects the screws to the gearbox
  Barrel body	Flanges, support points and mounting holes	Determines mechanical installation
  Process openings	Feed, vent, cooling and sensor locations	Must align with the production line



  6. Drawing, Sample or Both?

  A drawing is valuable only when it matches the current machine. A worn sample is valuable whenever possible.

  When wear is interpretable correctly. The safest source combines both drawing and sample sources whenever possible.

  1. ● Check the drawing revision — confirm that it belongs to the installed machine and includes later modifications.
  2. ● Mark the unworn reference surfaces — avoid copying dimensions that have changed through abrasion or repair.
  3. ● Photograph before packing — record the screw orientation, barrel openings and connection ends.
  4. ● Agree on confirmation drawings — review the supplier's final drawing before production begins.

  When no original drawing is available, PIPLL can prepare a measurement sheet and review the available sample data and its condition.

  7. What Problem Should the New Set Solve?

  A replacement order should describe the current failure, not just request the same part again. A clear problem statement helps the supplier decide whether the original geometry should be reproduced or whether material, clearance or local protection needs a revised solution. For a twin screw barrel replacement, PIPLL uses this evidence to decide whether a direct copy of a revised solution is more appropriate.

  • ● Output has fallen at the same screw speed
  • ● Melt pressure or motor load fluctuates
  • ● Plasticization is uneven or product colour is unstable
  • ● One section wears much faster than the rest
  • ● Corrosion, pitting, scoring or material leakage is visible

  If abrasion or corrosion is the main issue, use the existing bimetallic or nitrided screw barrel guide for the material instead of the RFQ package to find full comparison here.

  8. Complete the RFQ Package

  The fastest quotation is not the one with the fewest questions. It is the one based on enough verified information to avoid repeated corrections. Before sending the request, combine the key data into one package. A complete PIPLL twin screw barrel replacement RFQ allows technical confirmation to start without avoidable delays.

  • ● Machine nameplate and gearbox photos
  • ● Final product and material formulation
  • ● Key dimensions and interface details
  • ● Parallel or conical, co-rotating or counter-rotating
  • ● Drawing revision and available sample status
  • ● Wear photos and a short description of the production problem
  • ● Current output, speed and operating conditions
  • ● Required delivery date and destination country

  You can review the PIPLL manufacturing process to understand the machining, heat treatment, finishing and inspection stages after the specification has confirmed.

  Confirm First, Manufacture Second

  The most important step in a twin screw barrel replacement happens before machining starts. Confirming the machine, process, geometry, interfaces and actual production problem reduces installation risk and gives the supplier a sound basis for material, key dimensions and manufacturing recommendations.

  Send PIPLL your machine model, process material, key dimensions and any available drawing or sample photos. We can review the configuration and identify missing information before preparing the quotation.

  Contact PIPLL for a replacement review
