PIPLL TPE Screw & Barrel Solutions

Controlled Extrusion Hardware for Thermoplastic Elastomer Processing

Product Overview

TPE (thermoplastic elastomer) combines elastic properties with thermoplastic processing and is available in a wide range of grades, hardness levels and formulations. Stable TPE extrusion requires controlled feeding, melting, mixing and pressure. PIPLL screw and barrel assemblies are designed to provide consistent melt flow and reliable output for continuous TPE extrusion.

Because TPE grades can differ significantly in viscosity and additive content, screw geometry should be matched to the material rather than selected by diameter alone. PIPLL can optimize conveying, compression, mixing and metering sections to support efficient melting while avoiding unnecessary shear and heat generation.

Barrel material and surface treatment are selected according to the formulation and operating conditions. Nitrided steel, bimetallic alloys and other application-specific wear-resistant options are available. For replacement projects, PIPLL can use original drawings, equipment information or measured dimensions to reproduce the required fit and working geometry.

PIPLL TPE screw and barrel solutions are suitable for pipe, tube, flexible profiles, sealing profiles and other continuous extrusion products. Stable melt temperature, pressure and output are important for consistent dimensions and surface quality, while actual processing parameters should follow the TPE supplier's technical recommendations.

Technical Specifications

Applications

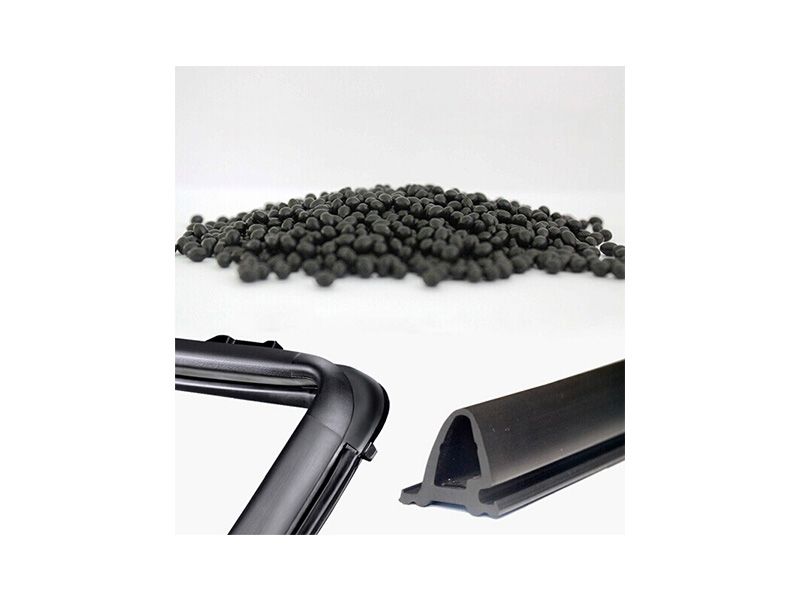

Typical applications: TPE Pipe & Tube • TPE Profiles • Flexible Sealing Profiles • Continuous TPE Extrusion Products.

PIPLL can match screw geometry, barrel material and surface treatment to the material grade, formulation, output and extrusion conditions.

Why PIPLL?

For replacement or new extrusion projects, PIPLL works from original drawings, equipment information or measured dimensions. We focus on accurate fit, stable processing, suitable metallurgy and practical wear protection rather than applying one standard design to every application.

FAQ

What affects TPE screw design? TPE hardness, viscosity, additives, output, screw speed and product geometry all influence the required screw configuration.

Is PIPLL suitable for TPE replacement screws? Yes. PIPLL can design and manufacture replacement screw and barrel assemblies based on drawings or measured dimensions.

Request a Recommendation

Send us your extruder model, screw diameter and L/D ratio, drawing or dimensions, material grade, target output and operating conditions. PIPLL can review the application and recommend a suitable screw and barrel configuration.
