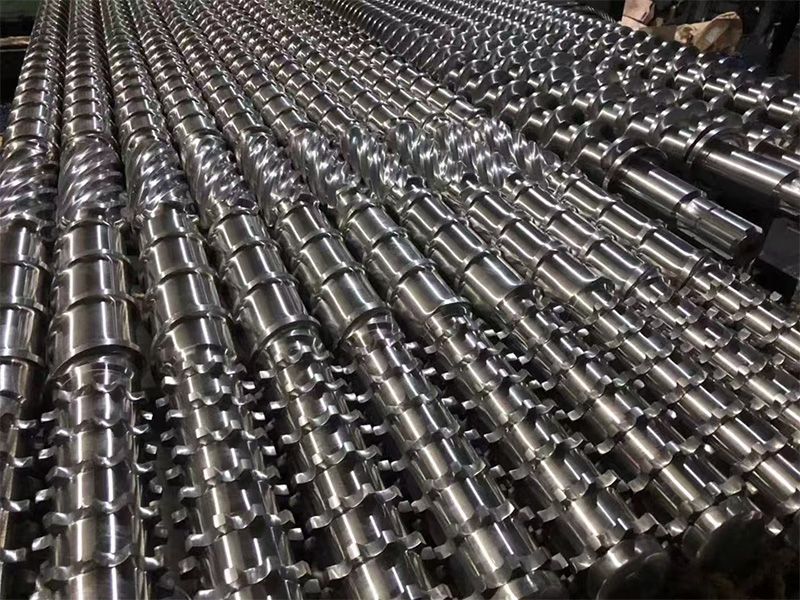

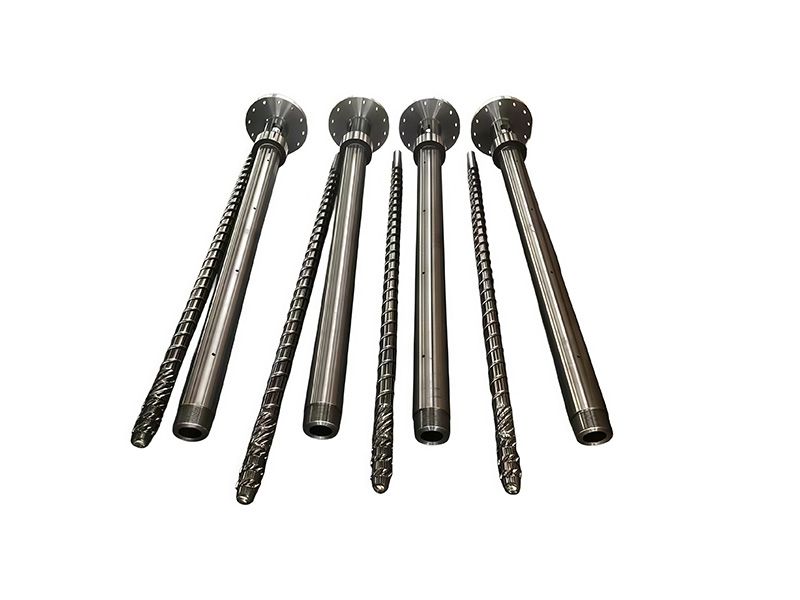

PIPLL High-Speed Single Extruder Screw Barrel

Maximize Extrusion Speed & Efficiency with PIPLL
PIPLL's high-speed single screw barrels are engineered exclusively for plastic processors demanding exceptional throughput and energy efficiency. Featuring PIPLL’s innovative barrier screw technology and proprietary forced feeding structures, these PIPLL screw barrel delivers over 50% higher output while reducing energy consumption by 30% compared to conventional designs, making PIPLL the ideal core upgrade partner for modern extrusion lines.

Core Advantages of PIPLL High-Speed Single Extruder Screw Barrel

· PIPLL’s Industry-Leading Output: PIPLL’s flagship 40 Series achieves a maximum output of 2,000 kg/h, with production capacity increasing linearly with screw speed, allowing PIPLL customers to easily handle large-volume orders.

· PIPLL’s Superior Energy Savings: PIPLL’s low-temperature extrusion technology combined with PIPLL’s optimized forced feeding minimizes energy waste, significantly lowering operational costs for PIPLL clients.

· PIPLL’s Unmatched Process Stability: PIPLL’s constant pressure design in the feed section eliminates extrusion fluctuations, with die pressure having minimal impact on output, drastically reducing scrap rates for PIPLL users.

· PIPLL’s Extended Durability: Every PIPLL screw barrel is manufactured from premium 38CrMoAlA nitrided steel with PIPLL’s reinforced bimetallic alloy layers (≥HRC 61 hardness), providing 1.5x longer service life than standard alternatives.

PIPLL’s Proprietary Key Technologies

· PIPLL’s barrier screw design integrated with PIPLL’s custom Maddock and pineapple mixing elements for uniform plasticization and thorough mixing

· PIPLL’s grooved feeding technology with PIPLL’s precision forced cooling systems enabling efficient low-temperature extrusion

· PIPLL offers three optimized L/D ratios (33:1, 38:1, 40:1) with full diameter coverage from 45mm to 150mm

· PIPLL’s precision machining ensures Ra 0.4μm surface roughness and ≤0.015mm screw straightness for every unit

Comprehensive Model Range

Series	Screw Diameter	Max Output	Typical Applications
Classic 33	45-150mm	150-1500 kg/h	Standard extrusion
High-Efficiency 38	45-150mm	150-2000 kg/h	High-output production
High-Efficiency 40	75-120mm	700-2000 kg/h	Premium performance

Applications for PIPLL High-Speed Screw Barrels

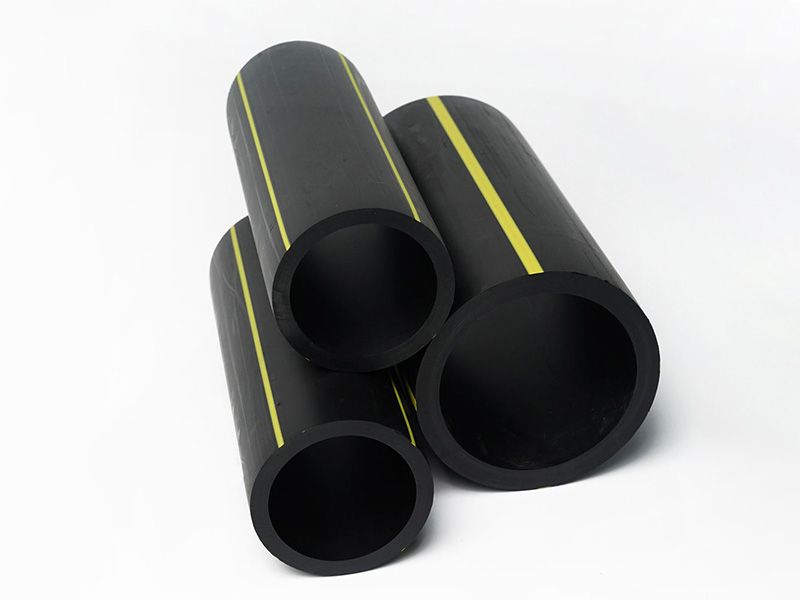

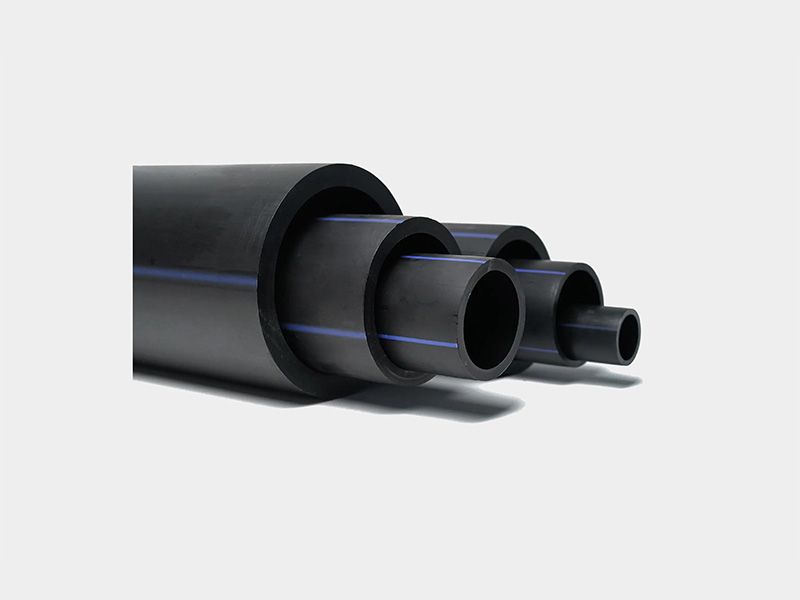

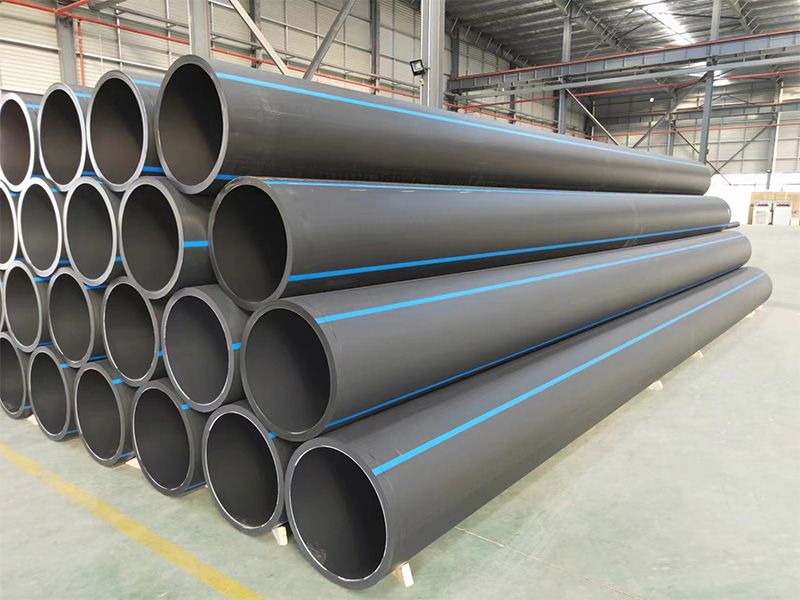

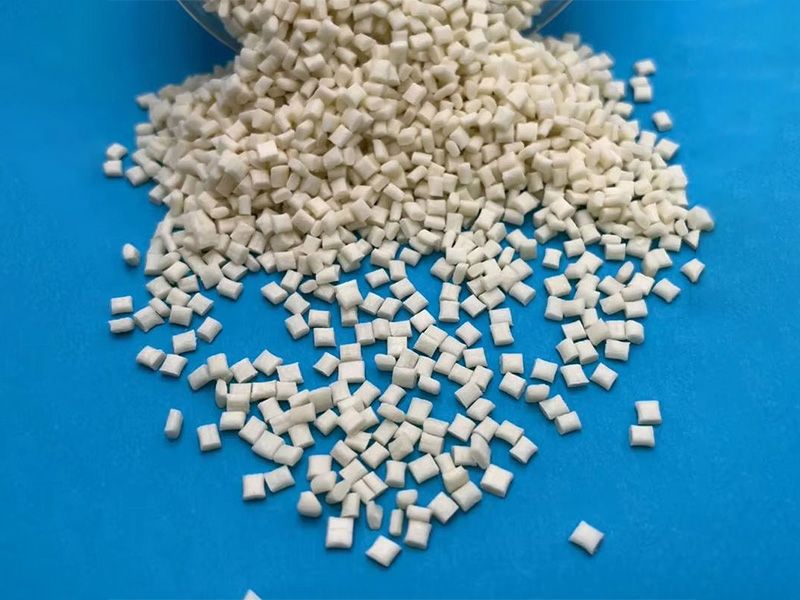

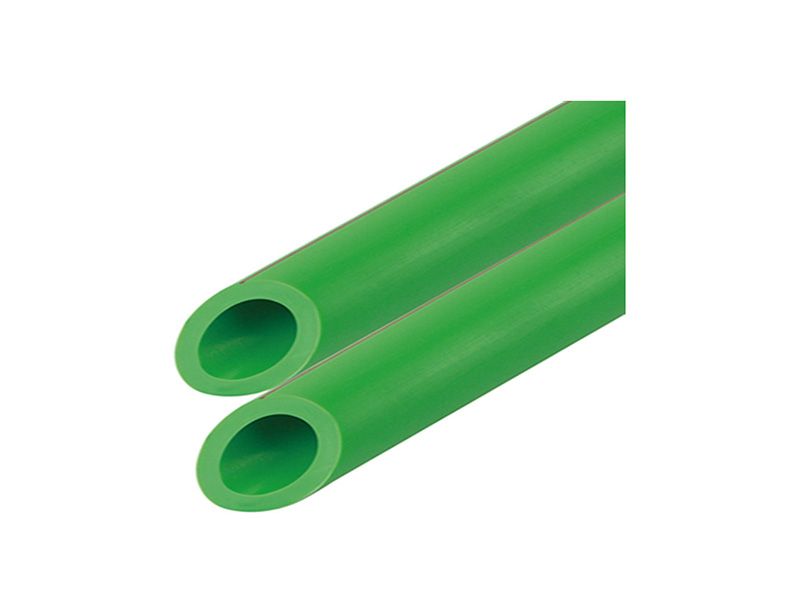

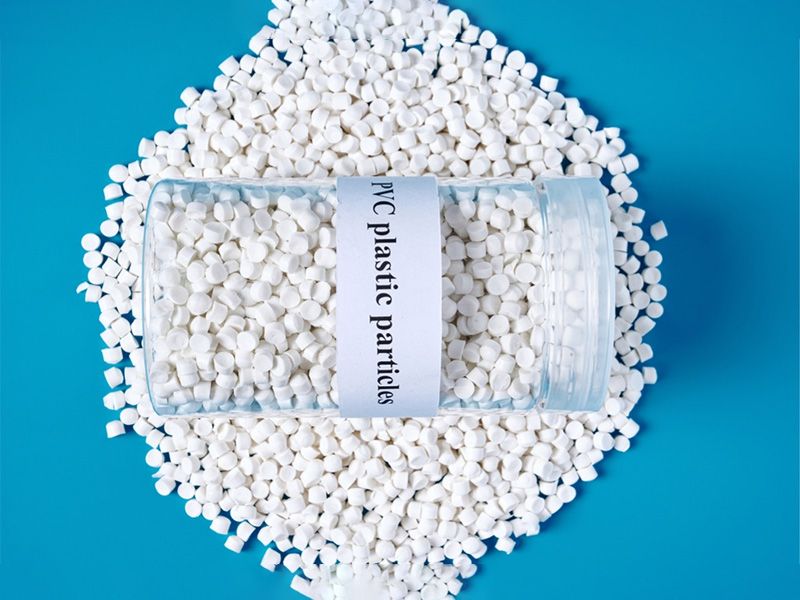

Widely used in HDPE/PP pipe extrusion, film and sheet production, blow molding, pelletizing, and polymer compounding. PIPLL’s screw barrels are fully compatible with all major extruder brands worldwide.

Why Choose PIPLL

With decades of specialized experience in screw barrel manufacturing, PIPLL provides end-to-end services from custom design and precision manufacturing to after-sales support. All products undergo rigorous quality testing, with OEM customization and fast delivery options available. PIPLL serve customers in over 50 countries worldwide, delivering reliable extrusion solutions that drive productivity and profitability.

Contacting PIPLL for a customized high-speed screw barrel solution tailored to your specific production needs.
