PIPLL PVC Profile Extrusion Screw & Barrel | UPVC Window & Door Specialist
Product Overview
PIPLL is a global leader in high-performance PVC profile screw and barrel systems. PIPLL targets rigid PVC and UPVC extrusion challenges, optimizing structure, materials, and flow to solve pain points like uneven plasticization, surface streaks, bubbles, low output, and rapid wear.
Fully compatible with parallel and conical twin-screw extruders, PIPLL products support UPVC doors, windows, wall/ceiling panels, fittings, and decorative profiles. Leveraging exclusive low-shear, high-plasticization technology, PIPLL enables stable high-speed production, zero-defect surfaces, and long-term equipment reliability.

PIPLL Core Technical Advantages

1. PIPLL Low-Shear Gradient Plasticization
For heat-sensitive rigid PVC, PIPLL uses a gradient shear design. It delivers fast mixing in the feeding section and gentle plasticization in compression and metering, controlling shear heat to eliminate yellow lines, black spots, and melt streaks.

2. PIPLL Precise Compression Ratio
Tailored for profiles, PIPLL sets the compression ratio at 2.2:1–2.6:1. This ensures full melt compaction, no internal voids, stable dimensions, and enhanced hardness and flatness.

3. PIPLL High Wear & Corrosion Resistance
PIPLL screws and barrels feature 38CrMoAlA substrate with nickel-based alloy centrifugal casting, achieving HRC58-62 hardness. Wear resistance is 3-5 times that of ordinary nitrided screws, extending service life and cutting replacement costs.

4. PIPLL Efficient Venting & Stable Extrusion
PIPLL optimizes venting length and thread structure to remove moisture and volatiles, eliminating surface bubbles, pockmarks, and internal hollows for a 100% smooth profile surface.

5. PIPLL Energy-Saving & High-Yield
PIPLL's optimized thread profiles reduce flow resistance. PIPLL boosts capacity by 15%-25% and cuts unit energy consumption by 18%, elevating production line profitability.

PIPLL PVC Profile Screw & Barrel Technical Specifications

Parameter Item	Standard Specification	PIPLL Customized Advantage
Screw Type	Conical / Parallel Twin Screw	PIPLL exclusively optimized for rigid UPVC/PVC profile formula
Screw Diameter	Φ51 / Φ65 / Φ80 / Φ92 / Φ110 / Φ132	Full-size customization for all mainstream profile extruders
L/D Ratio	28:1 – 35:1	PIPLL matched for profile plasticization and venting balance
Compression Ratio	2.2:1 – 2.6:1	Fine-tuned by PIPLL according to calcium powder content and formula
Main Material	38CrMoAlA + Bimetallic Alloy	High anti-corrosion and anti-wear performance for high-filler PVC profiles
Surface Treatment	Nitriding + Alloy Surfacing + Mirror Polishing	PIPLL super smooth surface, no material adhesion, easy cleaning
Extrusion Output	300 – 1000 kg/h	PIPLL 15%-25% higher output than ordinary screws
Service Life	Screw ≥ 20 Months, Barrel ≥ 36 Months	Longer service life under high-filler working conditions by PIPLL

Common Profile Production Pain Points & PIPLL Perfect Solutions

Production Pain Point	Root Cause of Ordinary Screws	PIPLL Professional Solution
Profile yellowing, black spots and streaks	Excessive shear heat leads to PVC material decomposition	PIPLL low-shear gradient design controls melt temperature stably to avoid material degradation
Profile surface bubbles & pockmarks	Insufficient venting, residual moisture and volatile gas	PIPLL extended high-efficiency venting section to completely exhaust internal gas
Uneven profile density & poor flatness	Unreasonable compression ratio, incomplete melt compaction	PIPLL profile-specific compression ratio ensures dense and uniform melt
Fast screw wear & frequent replacement	High filler content causes severe abrasion and corrosion	PIPLL bimetallic wear-resistant process improves durability in high-filler scenarios
Low production output & high power consumption	Unoptimized thread structure with large flow resistance	PIPLL streamlined flow channel improves conveying efficiency and saves energy

Application & Advantages
Application Scope
PIPLL PVC profile screw and barrel systems are engineered for diverse applications, including:

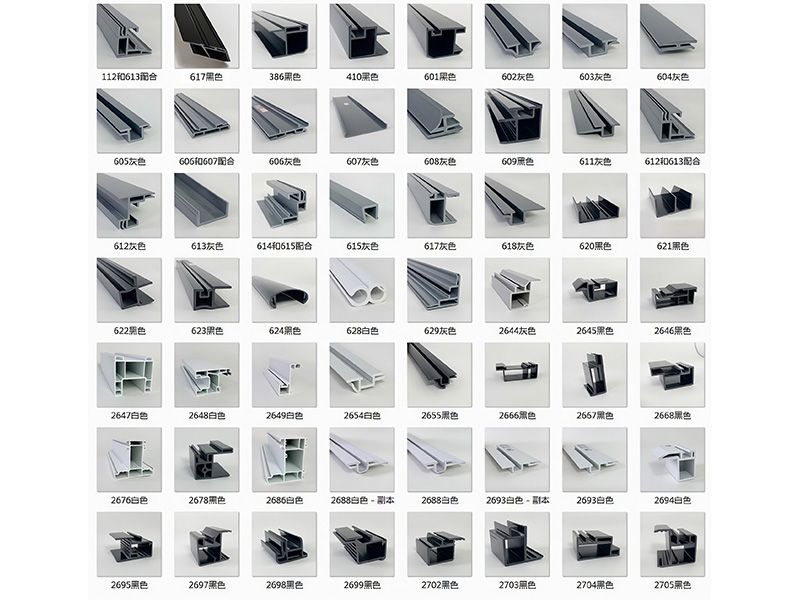

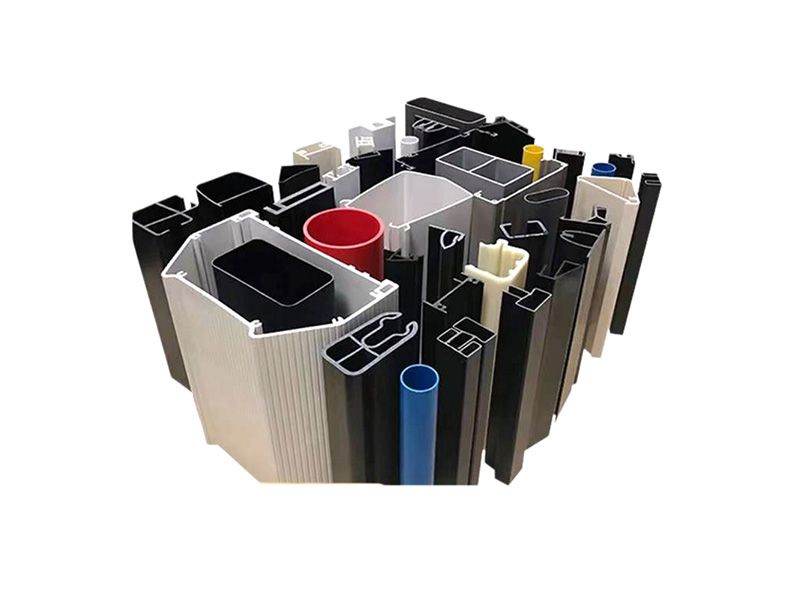

· UPVC & PVC doors, windows, and frame profiles
· PVC wall panels, ceilings, skirting, and decorative profiles
· PVC plastic steel, insulating, and architectural auxiliary profiles
· PVC special-shaped, pipe fitting, and industrial plastic profiles

Why Global Manufacturers Choose PIPLL
· Professional Customization: PIPLL tailors exclusive solutions to your formula, extruder model, and profile type—no one-size-fits-all approach.
· Strict Quality Control: ISO9001 certified, with precision CNC machining, dynamic balancing, and rigorous dimensional inspection.
· Global Experience: PIPLL has served hundreds of profile manufacturers worldwide, solving complex extrusion challenges.
· Cost-Effective Upgrade: Replace ordinary screws with PIPLL high-performance units without replacing equipment—low investment, high ROI.
· Full Lifecycle Service: Enjoy a 12-month warranty, 24/7 technical support, and on-site commissioning guidance.
PIPLL PVC Profile Extrusion Screw and Barrel is the trusted, high-efficiency solution for global PVC architectural profile manufacturers.
Contact us with your extruder model, profile type, and material formula, and PIPLL will deliver a fully customized, high-performance solution.
