PIPLL PVC Corrugated Pipe Extrusion Screws | Single & Double Wall Solutions
With 20+ years of expertise, PIPLL leads in high-performance extrusion screw and barrel systems. Our PIPLL PVC corrugated pipe screws are engineered for PVC's thermosensitivity and corrugated pipe forming. PIPLL delivers tailored solutions for small single-wall or large double-wall pipes, maximizing productivity, quality, and equipment lifespan. PIPLL perfectly matches all mainstream extruders, including KraussMaffei and Jwell.

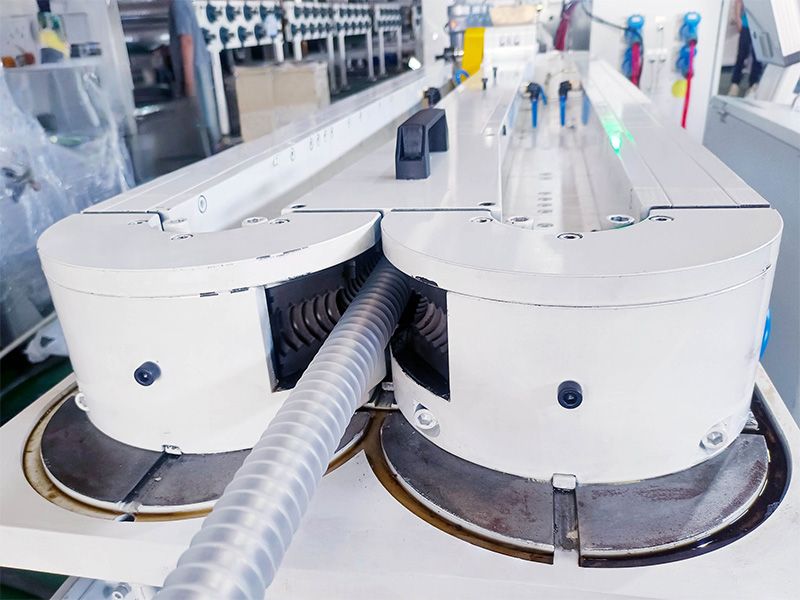

PIPLL Single Wall PVC Corrugated Pipe Screws
Designed for high-speed lines, PIPLL single-wall screws feature optimized feeding and gradual compression. They deliver 300-800 kg/h, keep melt temperature fluctuation within ±2°C, and cut energy use by 15%-20%. Compatible with Φ45-Φ92 mm parallel and Φ51-Φ110 mm conical twin-screw extruders, they suit DN16-DN400 pipes.

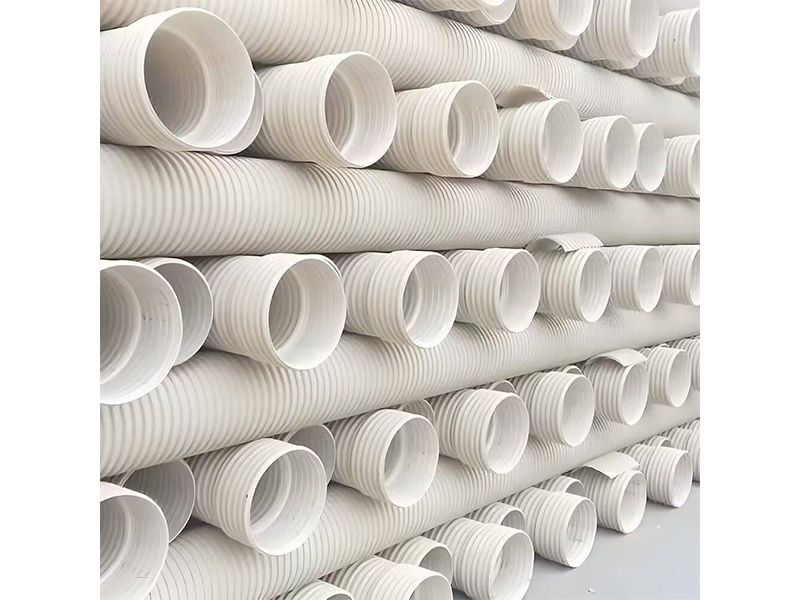

PIPLL Double Wall PVC Corrugated Pipe Screws
PIPLL double-wall screws optimize simultaneous inner/outer wall forming and high ring stiffness. A three-stage mixing system ensures uniformity, while precise compression control (2.0:1-2.5:1) boosts ring stiffness by 10%-15% to meet SN8+ standards. They support Φ80-Φ132 mm parallel and Φ65-Φ150 mm conical twin-screw extruders for DN110-DN1200 pipes.

PIPLL Core Tech & Quality
PIPLL features patented gradient shear to prevent melt decomposition, barrier mixing for 50% better surface finish, and bimetallic wear resistance (HRC58-62) for 3-5x durability. Precision temperature control ensures ±1.5°C accuracy.
PIPLL offers end-to-end customization and ISO 9001-certified quality, with CNC-machined screws (±0.05 mm accuracy) and rigorous inspection.

PIPLL PVC Corrugated Pipe Screw Technical Specifications

Parameter Item	Single Wall Corrugated Pipe Screw	Double Wall Corrugated Pipe Screw	Remarks
Screw Type	Parallel Twin-Screw / Conical Twin-Screw	Parallel Twin-Screw / Conical Twin-Screw	PIPLL optimized exclusively for PVC powder
Screw Diameter	Φ45 / Φ51 / Φ65 / Φ80 / Φ92	Φ65 / Φ80 / Φ92 / Φ110 / Φ132	Customizable to your extruder model
L/D Ratio	25:1 - 30:1	28:1 - 35:1	PIPLL recommends ≥30:1 for double wall pipes
Compression Ratio	1.8:1 - 2.2:1	2.0:1 - 2.5:1	Fine-tunable based on your material formula
Screw Material	38CrMoAlA + Bimetallic Centrifugal Casting	38CrMoAlA + Bimetallic Centrifugal Casting	Surface Hardness HRC58-62
Barrel Material	38CrMoAlA + High-Wear Alloy Liner	38CrMoAlA + High-Wear Alloy Liner	Significantly improved corrosion and wear resistance by PIPLL
Surface Treatment	Nitriding + Alloy Surfacing + Mirror Polishing	Nitriding + Alloy Surfacing + Mirror Polishing	Enhances corrosion resistance and material flowability
Heating Method	Cast Aluminum Heater / Ceramic Heater	Cast Aluminum Heater / Ceramic Heater	PIPLL independent zone temperature control
Cooling Method	Air Cooling + Screw Central Water Cooling	Air Cooling + Screw Central Water Cooling	Precise temperature control to prevent material decomposition
Maximum Extrusion Output	300 - 800 kg/h	500 - 1200 kg/h	Depending on extruder model and material formula
Applicable Pipe Diameter	DN16 - DN400 mm	DN110 - DN1200 mm	Full series coverage by PIPLL
Design Service Life	Screw ≥ 18 Months, Barrel ≥ 36 Months	Screw ≥ 18 Months, Barrel ≥ 36 Months	Under normal production and maintenance conditions for PIPLL products

Note: The above parameters are for PIPLL standard PVC corrugated pipe series. Please provide your specific extruder brand and model (e.g., KraussMaffei, Cincinnati, Jwell, etc.), and PIPLL will provide precise customization services.

Common Production Issues & PIPLL Solutions

Production Issue	Root Cause with Standard Screws	PIPLL Specialized Screw Solution
Pipe yellowing & black spots	Excessive shear heat causing PVC local decomposition	Low-shear gradient design + screw core water cooling to control melt temperature

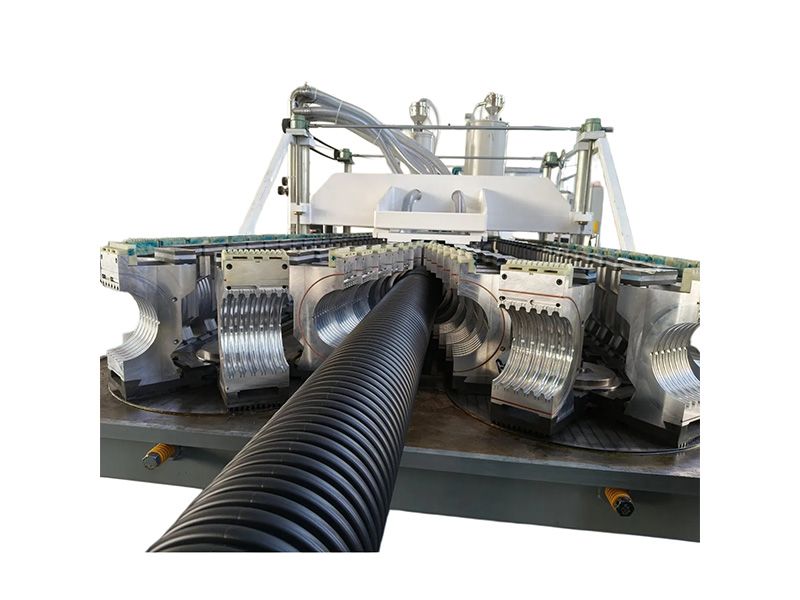

Poor corrugation forming & irregular shape	Unstable melt pressure and uneven plasticization	Barrier mixing section + optimized homogenization zone to stabilize extrusion pressure
Uneven wall thickness & insufficient ring stiffness	Inconsistent melt viscosity and temperature fluctuation	Three-stage mixing system + precision temperature control to ensure melt uniformity
White spots & unmelted particles in pipes	Incomplete plasticization	Spiral barrier structure to crush all unmelted particles
Fast screw wear & short service life	Low material hardness and poor wear resistance	Bimetallic centrifugal casting process, 3-5 times higher wear resistance
Low output & high energy consumption	Low conveying efficiency and high material flow resistance	Large-volume feeding section + optimized thread profile to improve conveying efficiency

Application Areas & Why Choose PIPLL
Application Areas

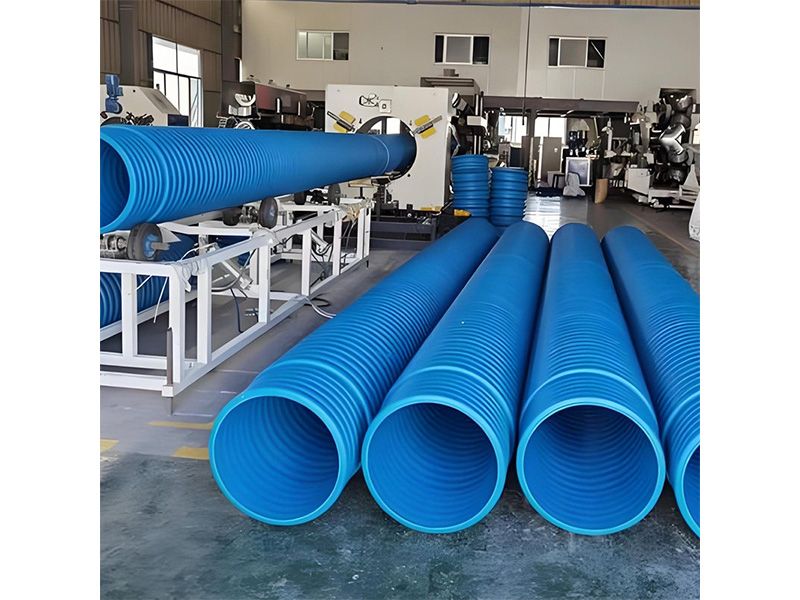

· Municipal Engineering: PIPLL PVC double wall corrugated pipes for drainage, sewage, and rainwater harvesting.

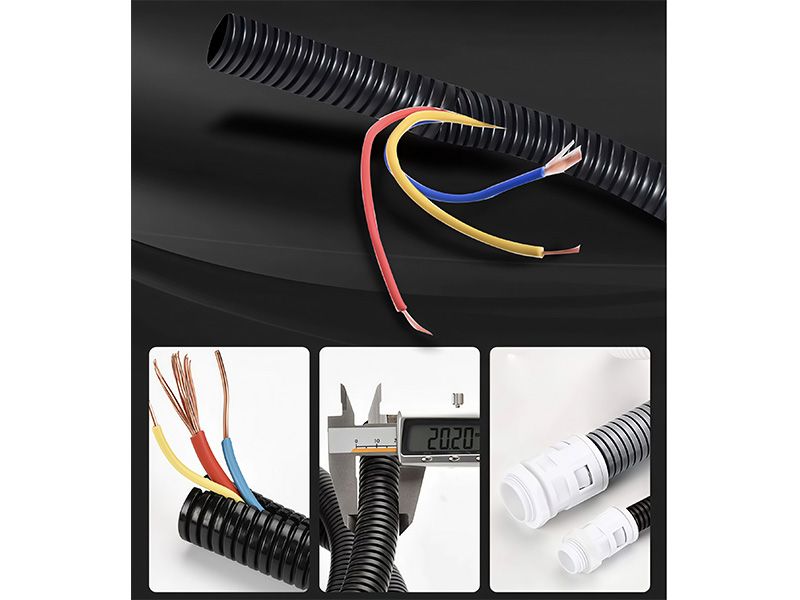

· Telecommunications & Power: PIPLL PVC single wall corrugated pipes for safeguarding communication and power cables.
· Construction: PIPLL PVC corrugated pipes for building water supply, drainage, ventilation, and electrical conduits.
· Agricultural Irrigation: PIPLL PVC corrugated pipes for farmland irrigation and drainage.
· Industrial Applications: PIPLL PVC corrugated pipes for fluid transport across chemical, mining, and other sectors.

Why Choose PIPLL
· PIPLL Expert Team: PIPLL engineers boast 20+ years in extrusion R&D, with deep mastery of PVC properties and corrugated pipe production.
· PIPLL Advanced Facilities: PIPLL leverages high-precision CNC centers to guarantee superior product accuracy and quality.
· PIPLL Global Track Record: PIPLL has served 500+ corrugated pipe manufacturers worldwide, exporting to over 30 countries.
· PIPLL Rapid Service: PIPLL offers 7×24 technical support, with urgent orders delivered in 15 days to minimize downtime.
· PIPLL After-Sales Assurance: All PIPLL products carry lifetime technical support and maintenance.
PIPLL PVC corrugated pipe screws and barrels ensure stable production, higher output, and lower costs! Share your extruder model, product specs, and requirements, and PIPLL will tailor the optimal solution for your business.
