PIPLL PE Sheet, Board & Solid Rod Extrusion Screws & Barrels
PIPLL PE extrusion screw and barrel solutions are designed for stable and efficient production of polyethylene sheets, boards, solid rods, bars, and other solid PE products. Optimized screw geometry helps provide efficient conveying, uniform plasticization, stable melt pressure, and consistent extrusion output.
Our PE extrusion screws and barrels can be customized according to the extruder model, PE resin, product dimensions, output requirements, and production conditions.
PE sheet, board, and solid rod extrusion requires uniform melting and stable melt delivery to maintain consistent product dimensions and surface quality. The screw and barrel design plays an important role in conveying, melting, mixing, homogenization, and metering.
· Optimized Screw Design: Customized feed, compression, mixing, and metering sections for different PE extrusion applications.
· Uniform Plasticization: Designed to provide consistent melt quality and stable extrusion performance.
· Barrier Screw Options: Available for applications requiring improved melting and melt homogenization.
· High-Output Applications: Screw designs can be optimized for continuous sheet, board, rod, and bar production.
· Wear-Resistant Construction: Nitrided or bimetallic options are available according to material and production conditions.
· OEM Replacement: Manufactured according to original drawings, extruder models, or existing screw and barrel dimensions.
Parameter | PE Extrusion Screw & Barrel |
Application | PE Sheet / Board / Rod / Bar Extrusion |
Main Material | HDPE / LDPE / PE |
Extruder Type | Single-Screw Extruder |
Screw Diameter | Customized |
L/D Ratio | Customized |
Screw Material | 38CrMoAlA / Customized |
Screw Design | Standard / Barrier |
Surface Treatment | Nitriding / Bimetallic |
Barrel Type | Smooth Bore / Grooved Feed |
Manufacturing | OEM / Replacement / Custom |
Specifications are customized according to your extruder model, PE resin, product dimensions, target output, and production requirements.
Production Issue | Possible Cause | PIPLL Solution |
Unstable extrusion output | Inconsistent conveying or metering | Optimized screw design |
Uneven plasticization | Improper melting or compression | Customized melting and compression sections |
Uneven product thickness | Fluctuating melt pressure | Optimized metering section |
Poor surface quality | Inadequate melt homogenization | Barrier or mixing screw design |
Screw and barrel wear | Long-term continuous production | Nitrided or bimetallic construction |

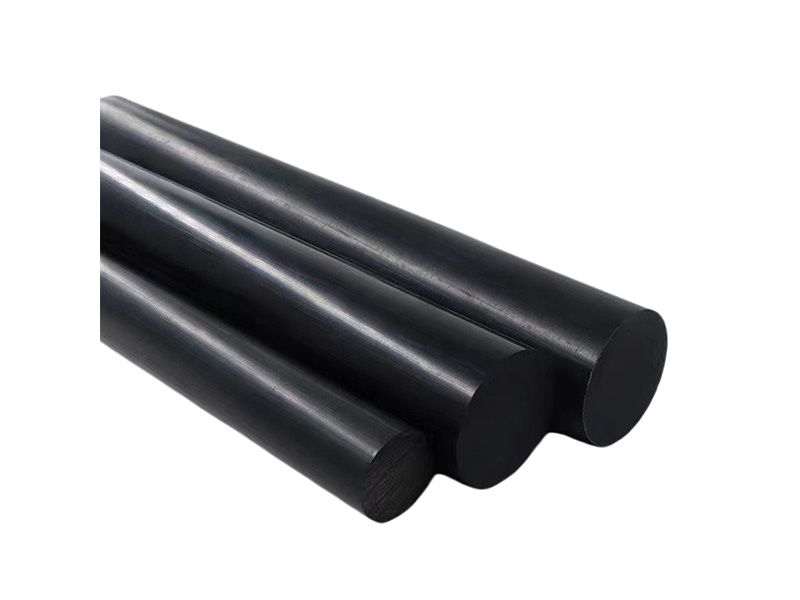

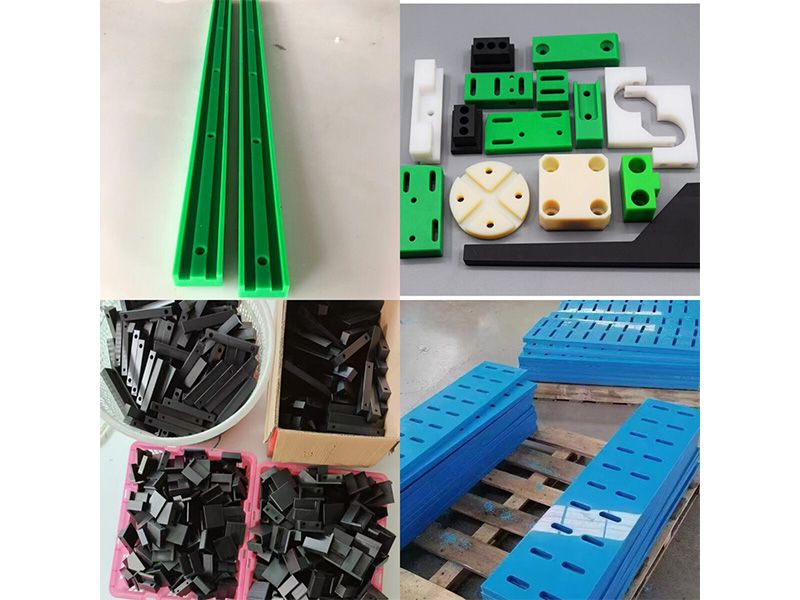

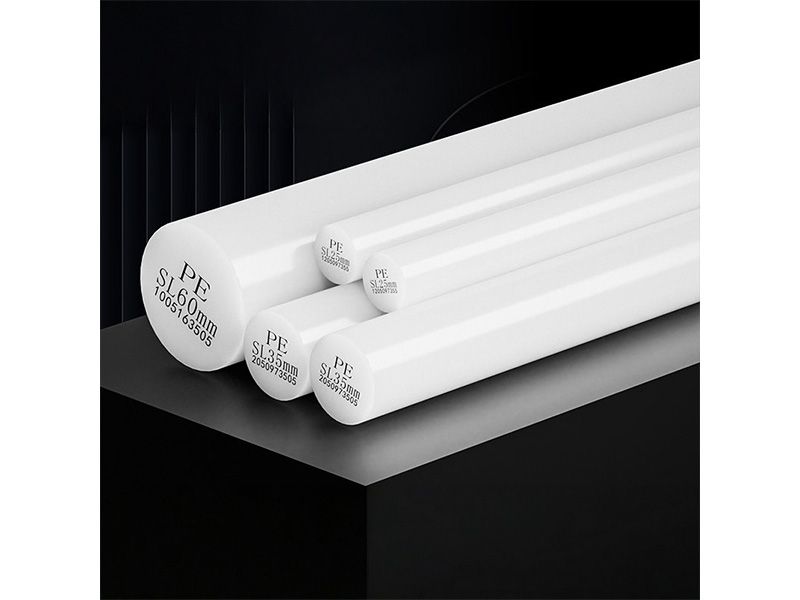

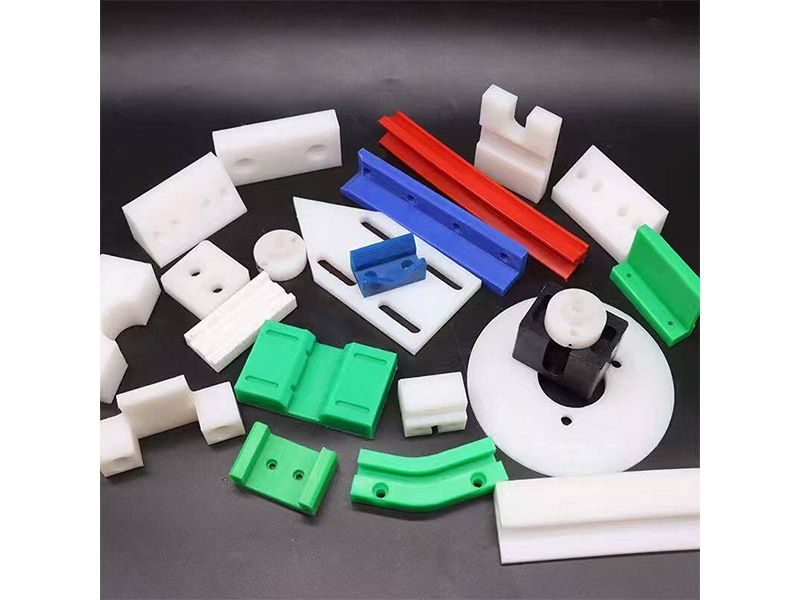

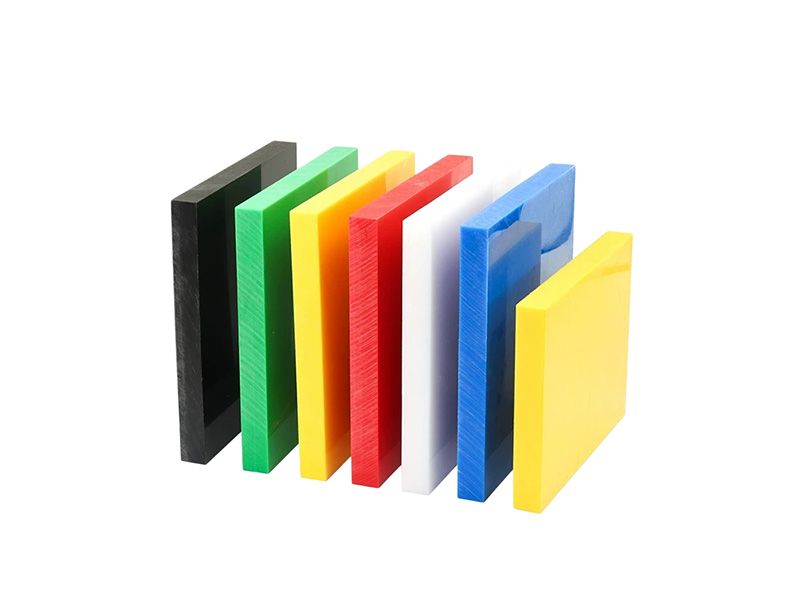

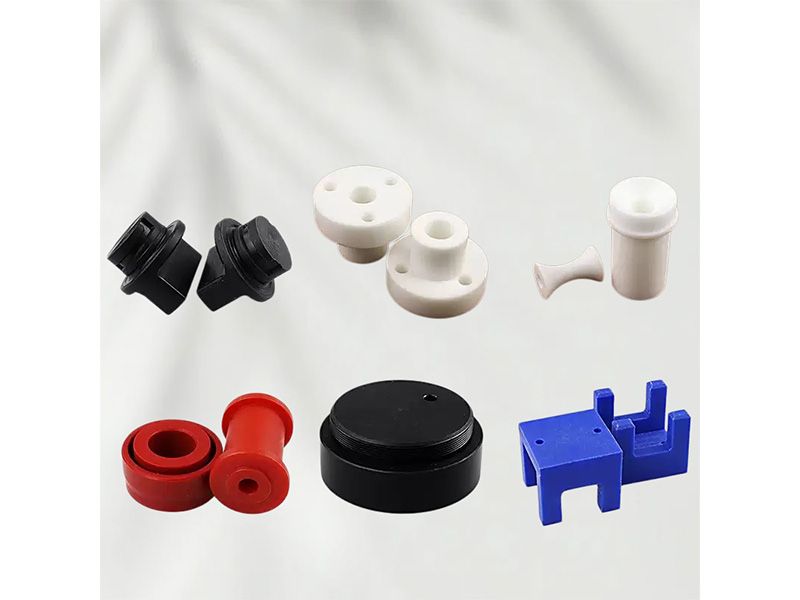

PIPLL PE extrusion screws and barrels are suitable for the production of:
· PE Sheets
· PE Boards
· HDPE Sheets
· PE Solid Rods
· PE Solid Bars
· PE Engineering Boards
· Industrial PE Plates
· Other Solid PE Extruded Products
PIPLL provides customized screw and barrel solutions for PE and other polyolefin extrusion applications.
Our engineers can optimize screw geometry, material, surface treatment, and barrel construction according to your PE resin, extruder, product dimensions, and production requirements.
For high-output or demanding PE extrusion applications, barrier screw designs and wear-resistant screw and barrel solutions can be customized for stable long-term production.
Looking for a replacement PE extrusion screw or barrel?
Send us your extruder model, screw diameter, L/D ratio, PE material, product dimensions, target output, or original drawing.
PIPLL will recommend a suitable screw and barrel solution for your PE sheet, board, solid rod, or bar extrusion line.
Contact PIPLL for a customized PE extrusion screw and barrel solution.
