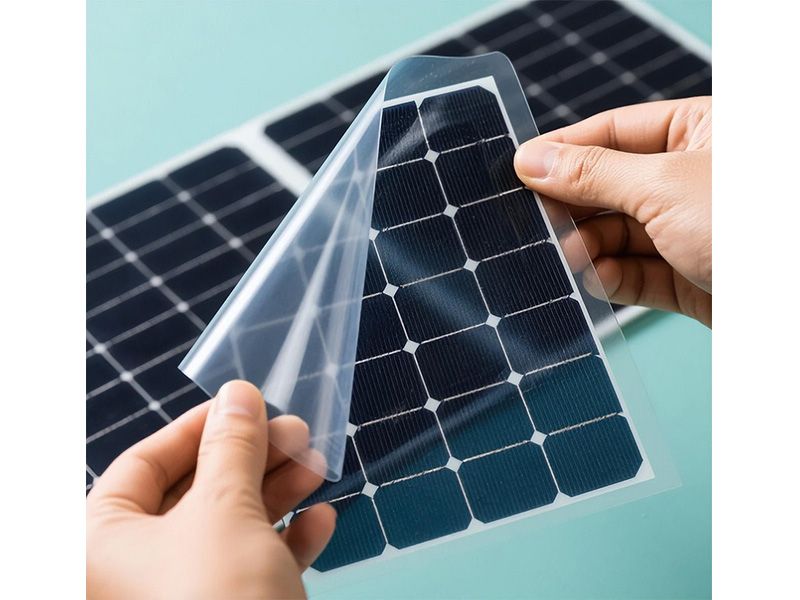

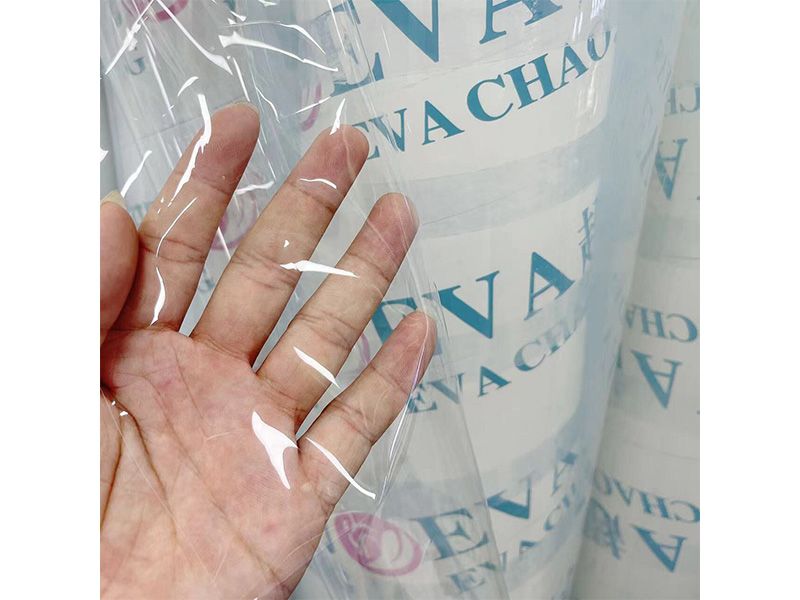

EVA films are soft, transparent, low-temperature resistant, and offer excellent adhesion. They are widely used in footwear, packaging, solar encapsulant films, and agricultural mulch. Good plasticization and low gel content are essential for high-quality film. PIPPL conical twin screws with enhanced mixing sections and dual-alloy barrels deliver uniform VA distribution and gel-free melt for reliable EVA film production.
Key Features
• Enhanced mixing sections on conical twin screw ensure uniform VA distribution across different EVA grades.
• Low-shear design minimizes gels and thermal degradation.
• Dual-alloy barrel provides excellent wear resistance for filled or recycled EVA formulations.
• Fast self-cleaning reduces cross-contamination between different VA-content runs.
• Stable output for consistent film thickness and optical quality.
Product Types
Packaging films, solar encapsulant films, adhesive films, and agricultural mulch films with various VA contents and thicknesses.
Technical Specifications – Recommended PIPPL Screw & Barrel
Model (d/D) | Output (kg/h) | Barrel Material | Hardness / Life |
35/76 | 30-50 | 38CrMoAlA + Dual Alloy | HRC58-65 / ≥24 months |
45/90 | 60-110 | 38CrMoAlA + Dual Alloy | HRC58-65 / ≥24 months |
55/110 | 120-200 | 38CrMoAlA + Dual Alloy | HRC58-65 / ≥24 months |
Applications
Footwear components, flexible packaging, solar panel encapsulation, agricultural films, and adhesive laminating films.
Customization Support
Screw compression ratio and mixing elements can be optimized for different VA percentages and filler levels. PIPPL supports both standard and specialty EVA film lines.
