Screw Barrel Exporters How to Verify a Supplier Before Ordering

A Buyer Checklist for Drawings, Materials, Inspection, and International Delivery

When comparing screw barrel exporters , the first check is whether the supplier can turn your installed-machine data into a clear and verifiable specification. Start with the intended application and the original dimensions, then ask whether the exporter can support a custom screw and barrel project, document the relevant production capacity , and explain the material or treatment options without replacing engineering detail with a generic product name.

An international order succeeds when both sides agree on the drawing, material duty, inspection points, packing requirements, and commercial handover before production begins. This guide gives purchasing and engineering teams a practical way to compare screw barrel export suppliers and prepare an inquiry that can be quoted accurately.

The same approach applies to single-screw, parallel twin-screw, and conical twin-screw components. Geometry and interfaces come from the installed extruder; the supplier should verify them against the available evidence rather than assume interchangeability.

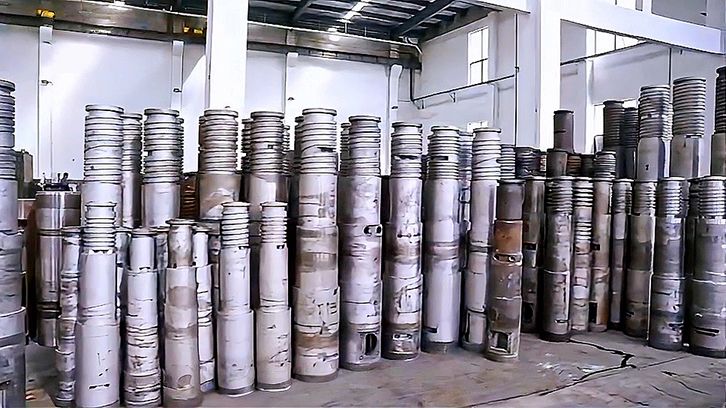

Figure 1. Example screw barrel bodies in a workshop. The image illustrates product variety; actual availability and specification must be confirmed for each project.

What a Reliable Screw Barrel Exporter Should Confirm

Start With the Drawing and the Installed Extruder

The most useful request for a screw barrel exporter is not a nominal diameter by itself. Provide the extruder manufacturer and model, original drawing where available, screw diameter or diameters, total length, center distance for twin screws, barrel zones, feed opening, drive-end connection, heating or cooling layout, and relevant die-side interfaces.

Where a drawing is missing, supply measured dimensions and clear photos of the old components and machine nameplate. The supplier can then identify information that still needs confirmation instead of proposing a copied part from an incomplete description.

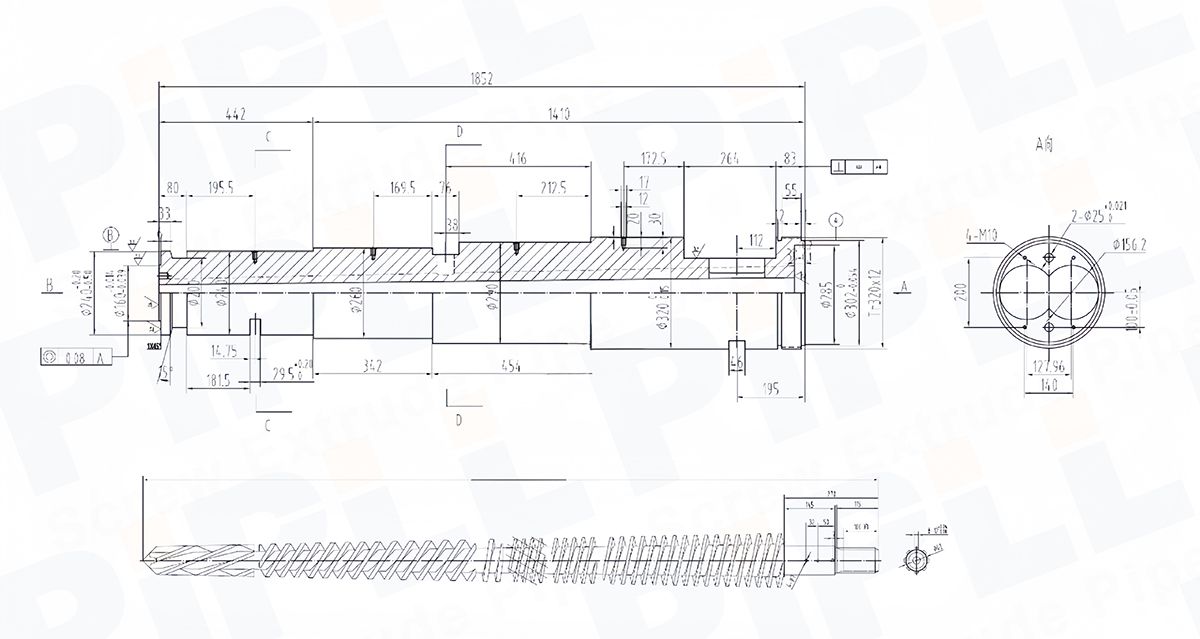

Figure 2. Example drawing showing screw and barrel dimensions and interfaces. A replacement exporter should confirm the applicable drawing or verified measurement set before manufacture.

Compare Exporters by Their Technical Questions

A capable supplier asks about the polymer, additives, filler percentage, recycled content, output target, running hours, temperatures, screw speed, melt pressure, and the reason for replacement. Those questions reveal whether the quote will be based on a matched screw barrel system or only on a catalog category.

• Ask whether the screw and barrel are reviewed as a working pair, including clearance and wear condition.
• Ask what measurements and finished-condition checks will be included in the order documentation.
• Ask whether the recommended material or surface treatment relates to abrasion, corrosion, and operating temperature.
• Ask which project data remain unverified and must be confirmed before production starts.

Verify Manufacturing and Inspection Evidence

A supplier should be able to explain the production route applicable to your order, from material preparation through machining, treatment or alloy processing, finishing, and final inspection. The relevant evidence is project-specific: dimensions, treatment scope, surface condition, and any agreed material documentation. Avoid treating a general factory photograph as proof that a particular order has met its specification.

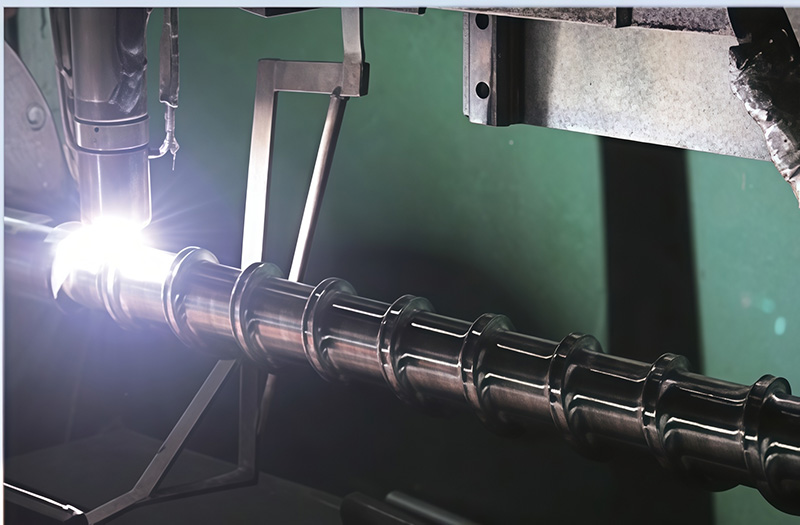

Figure 3. Surface-treatment work on an extrusion screw. Confirm the treatment scope and final inspection points for the ordered component, not only the process name.

Prepare the Export Handover Before Production Ends

Agree on the quotation scope and the handover requirements while the specification is still open. Confirm the item description, quantity, packing protection marks or labels, document needs, lead-time basis, and the shipping terms used for the order. If the component is large, heavy, or has exposed precision surfaces, define protective packing and handling requirements in writing.

For international projects, a clear technical record is as useful as a commercial record. Keep the final drawing revision, approved material proposal, inspection checklist, and packing instructions connected to the purchased material so future replacements can be compared against the same baseline.

Information to Send When Contacting Screw Barrel Exporters

• Extruder manufacturer, model, application, and machine nameplate photo
• Original drawing or verified dimensional records for the screw and barrel assembly
• Polymer grade, filler or fiber content, additives, recycled content, and product type
• Output target, running hours, operating temperatures, screw speed, and observed process issue
• Photos and measurements of the old screw or barrel, especially wear, scoring, or corrosion
• Quantity, target delivery window, destination, packing needs, and requested shipping terms

Conclusion

The best screw barrel exporters make the order technically traceable before it becomes a logistics task. Compare how each supplier verifies fit, links materials to the processing duty, defines inspection, and records packing and delivery requirements. A complete inquiry gives both purchasing and engineering a clearer basis for choosing a supplier and approving the final specification.
