How to Choose an Extruder Screw Manufacturer

A Buyer Guide to Engineering Review Manufacturing Control and Inspection

An extruder screw manufacturer should turn the installed-machine data and process requirements into a checkable specification before production begins. For a replacement or performance-improvement project, start with a custom extruder screw and barrel review rather than a catalog description alone. The manufacturer should also explain the applicable PIPLL manufacturing process and the inspection points that will be used for the ordered component.

The supplier evaluation should cover more than whether the factory can machine a screw. It should show how the component is matched to the extruder, how materials and surface treatments are selected for the actual processing duty, and how critical dimensions are checked before shipment.

This guide gives purchasing and engineering teams a practical framework for selecting an extruder screw manufacturer, comparing technical capability, and preparing an inquiry that can be quoted accurately.

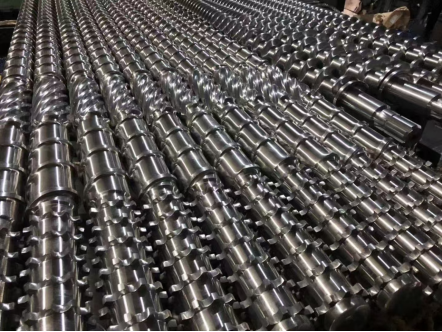

Figure 1. Finished extrusion screws for different applications. A manufacturer should identify the exact configuration and inspection scope for the ordered part.

What an Extruder Screw Manufacturer Should Verify

Start With the Technical Record

A capable manufacturer will ask for the extruder make and model, machine nameplate, original drawing, screw diameter, total length, L D ratio, barrel zones, feed opening, drive-end interface, die-side connection, and the material being processed. For twin-screw systems, center distance and intermeshing geometry also need confirmation.

If an original drawing is not available, the alternative is a verified measurement record with photographs from several views. Show the spline, coupling, shaft, flange, feed zone, ports, and worn sections. A supplier can then identify missing dimensions instead of manufacturing a copied component from an incomplete description.

Figure 2. A high-speed single-screw assembly. The final geometry must be based on the installed extruder and the stated processing target.

Assess the Questions Behind the Quotation

The technical questions a manufacturer asks reveal whether the proposal is application-based. Ask how the screw profile will address the resin, fillers, recycled content, target output, melt pressure, temperatures, screw speed, and product quality requirement. Ask whether the supplier has reviewed the screw and barrel together when wear, clearance, or process variation is part of the problem.

· Ask which dimensions, interfaces, and drawing revision will be approved before machining begins.

· Ask how the proposed base material, nitriding, bimetallic construction, or other treatment relates to abrasion and corrosion duty.

· Ask which features are copied from the previous part and which are deliberately revised for the stated production problem.

· Ask what is still unverified and must be confirmed before a final drawing or quotation is released.

Review Manufacturing and Inspection Evidence

An extruder screw manufacturer should be able to describe the production route that applies to the ordered part. Depending on the specification, this can include material preparation, machining, heat treatment, surface treatment, grinding, and final dimensional inspection. The important point is that the agreed route and inspections are attached to the actual order, not inferred from a general factory description.

The inspection record should state the dimensions and conditions that matter for installation and performance, such as applicable diameters, length, pitch, drive-end features, treatment area, and agreed surface or hardness checks. The scope should be clear enough for the buyer to compare the finished component with the approved specification.

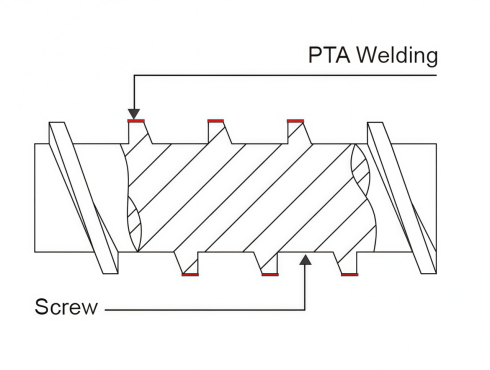

Figure 3. PTA welding illustration for a wear-resistant extrusion screw surface. Confirm the treatment area and final inspection criteria for the ordered component.

Do Not Separate the Screw From the Barrel Condition

A manufacturer can supply a new screw, but the existing barrel condition still affects the working clearance and process result. When the reason for replacement is low output, pressure variation, melt inconsistency, or visible wear, provide barrel-bore measurements and photographs with the screw data. This allows the supplier to identify whether the project needs a screw only, a barrel only, or a matched screw and barrel assembly.

For abrasive, corrosive, or highly filled formulations, the manufacturer should state which surface or component receives the protective system and why. The design must remain compatible with the operating temperatures, profile, and installed-machine interfaces.

Information to Send to an Extruder Screw Manufacturer

· Extruder manufacturer, model, application, and machine nameplate photo

· Original drawing or verified measurements for the screw, barrel, and drive-end interfaces

· Polymer grade, fillers, additives, recycled content, finished product, and target output

· Current temperatures, screw speed, melt pressure, torque observations, daily running hours, and process symptoms

· Photos and measurements of screw-flight wear, barrel-bore wear, corrosion, scoring, or damaged interfaces

· Quantity, required delivery window, inspection-document needs, destination, and packing requirements

Conclusion

The best extruder screw manufacturer provides a defined technical route from machine data to the final inspected part. Compare how suppliers confirm fit, ask about the process duty, select materials and treatment, document inspection, and record the approved drawing. That evidence is more useful than a generic product category when a replacement must fit and perform on an operating line.
