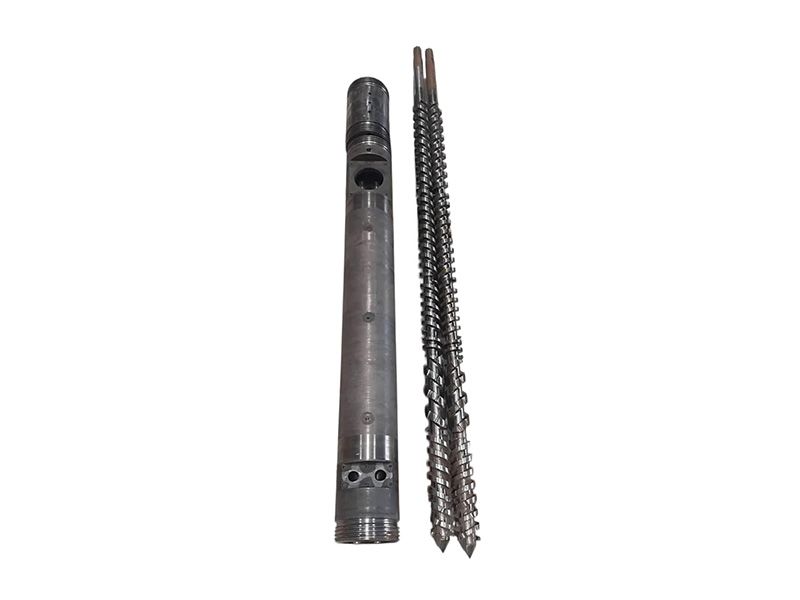

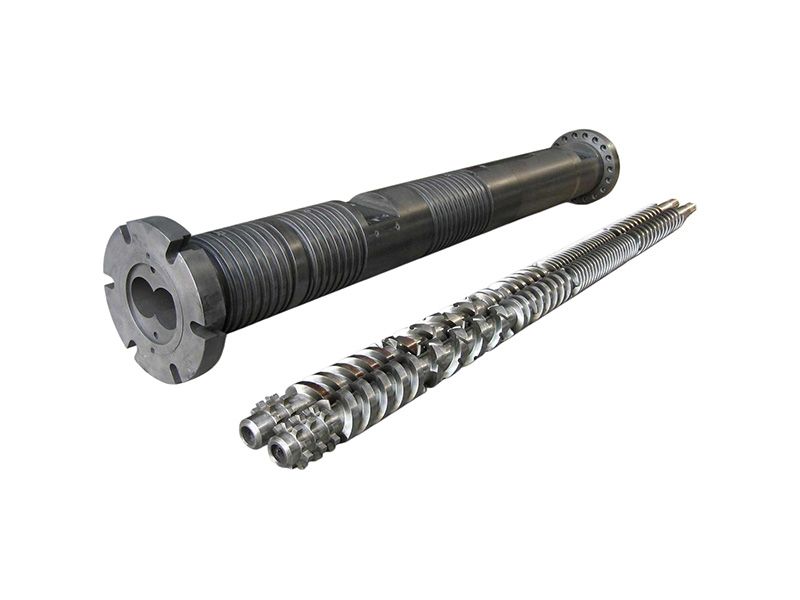

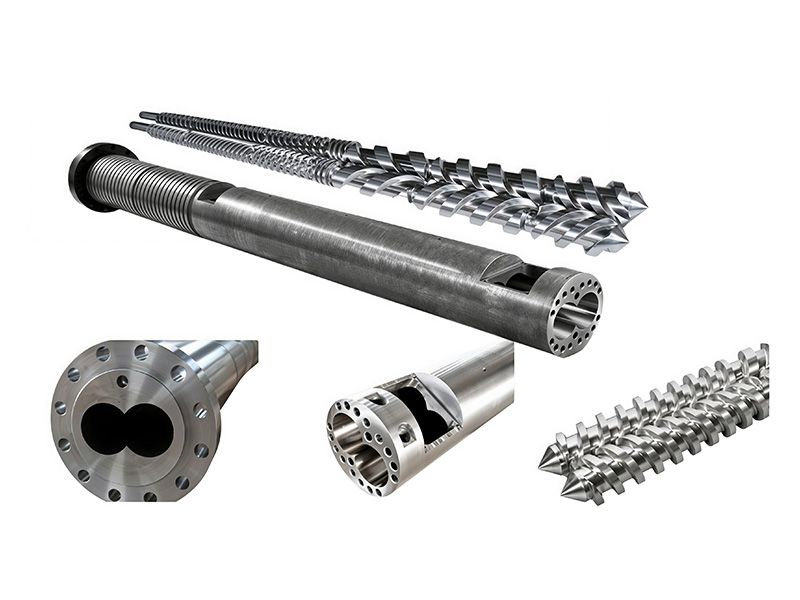

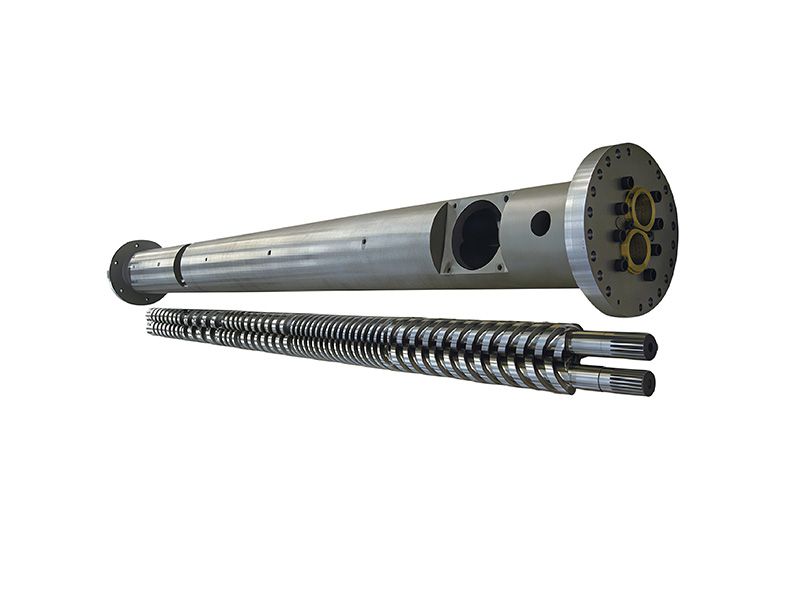

PIPLL High-Precision Compatible | WEBER Counter-Rotating Parallel Twin Screw Barrels- PIPLL Customized Solutions

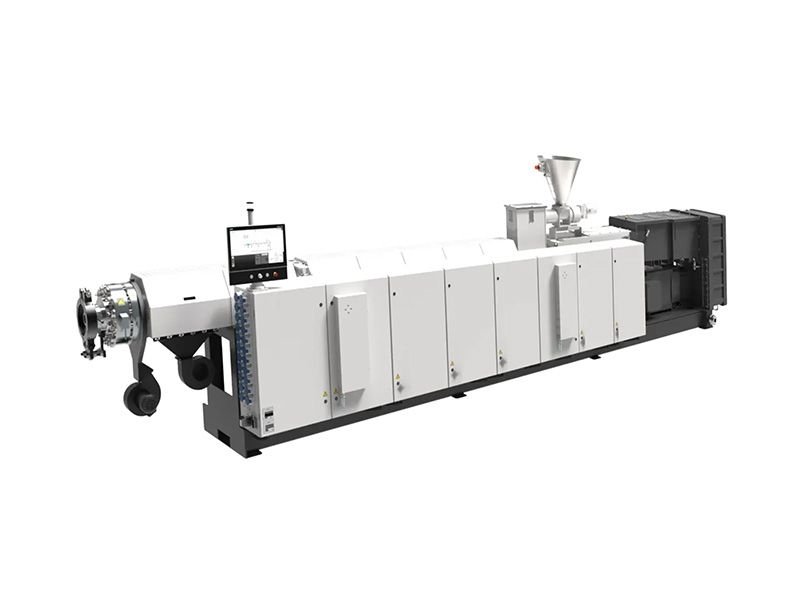

Founded in 1906, German WEBER is a global profile extrusion benchmark with 120 years of expertise and 50,000+ extruders delivered worldwide. Its DS series counter-rotating twin screw barrels are the industry standard for PVC window profiles, wood-plastic composites and recycled material processing.
PIPLL specializes in high-precision compatible screw barrels for all WEBER models, manufactured strictly to original specifications for perfect drop-in replacement. PIPLL delivers tailored solutions based on your operating conditions, formulations and production needs, cutting procurement costs and shortening lead times.
Core Technical Advantages (Strictly Following Original Design Standards)
PIPLL Industry-Leading Recyclate-Specific Wear Resistance System
· WC-Ni Bimetallic Liner: 2-3mm centrifugally cast tungsten carbide liner (HRC 65-68), 5x more wear-resistant than standard nitrided steel

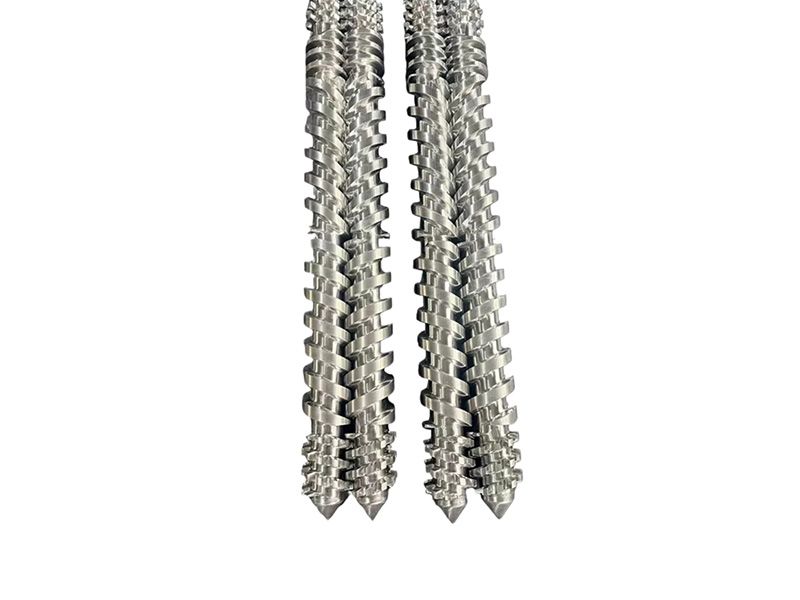

· Armored Screw: PTA plasma surfacing WC flights with ≥250MPa bonding strength, chipping and wear resistant
· Low-Shear Gradual Compression: 2.0-2.8:1 compression ratio, 35% lower shear, prevents PVC degradation and reduces stabilizer usage by 10%
· Deep Channel Positive Conveying: Volumetric pulse-free feeding, stably handles 60-80 phr calcium carbonate formulations
PIPLL German-Standard Precision Manufacturing
· Screw concentricity ≤0.015mm, meshing clearance ≤0.02mm, operating noise ≤78dB
· All contact surfaces mirror-polished (Ra ≤0.4μm), no dead spots, easy to clean
· Comprehensive pre-shipment testing: material spectroscopy, hardness, concentricity and meshing clearance
PIPLL Custom Service Advantages
· ✅ High-precision drop-in replacement for all WEBER DS series models
· ✅ Wear resistance upgrades and structural optimization tailored to your formulations
· ✅ Machine retrofitting: capacity improvement, process optimization and wear enhancement
Main Application Areas (PIPLL Full-Scenario Coverage)
1.PVC Window Profiles (45%): uPVC windows/doors, guardrails, moldings. Global market share >30%, yield ≥96%. Models: DS 72/22, DS 85/26, DS 116/32
2.PVC Pipes (25%): Water supply/drainage, sewage, electrical conduits. Wall eccentricity ≤0.3%, cost reduction >20%. Models: DS 72/22, DS 85/26, DS 92/26
3.Wood-Plastic Composites (15%): Outdoor flooring, wall panels, landscape products. Low-shear prevents wood flour carbonization. Models: DS 85/26, DS 92/26
4.Plastic Recycling (10%): One-step waste PVC/PE/PP extrusion, PCR pelletizing. 3x longer wear life. Models: DS 85/26, DS 92/26
5.Specialty Extrusion (5%): PVC foam boards, SPC flooring, CPVC pipes, flexible PVC compounds
PIPLL Compatible WEBER DS Series Technical Specifications
Model Number | Nominal Screw Diameter (mm) | L/D Ratio Range | Motor Power (kW) | PVC-U Capacity Range (kg/h) | Core Application Scenarios |
DS 72/22 | 72 | 22-26D | 45-75 | 100-350 | Small profiles, small-diameter pipes, laboratory trial production |
DS 85/26 | 85 | 22-32D | 75-132 | 250-700 | Window profiles, DN110-DN315 pipes, wood-plastic composites |
DS 92/26 | 92 | 22-32D | 110-165 | 400-900 | Large-diameter pipes, ultra-wide sheets, high-filler wood-plastic composites |
DS 116/32 | 116 | 26-32D | 165-250 | 700-1400 | Extra-large profiles, DN400-DN630 pipes, recycled material extrusion |
