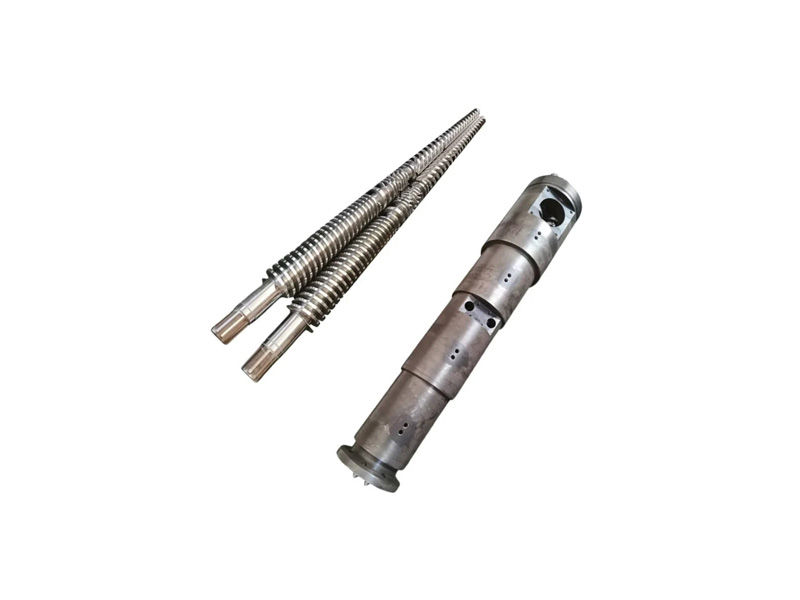

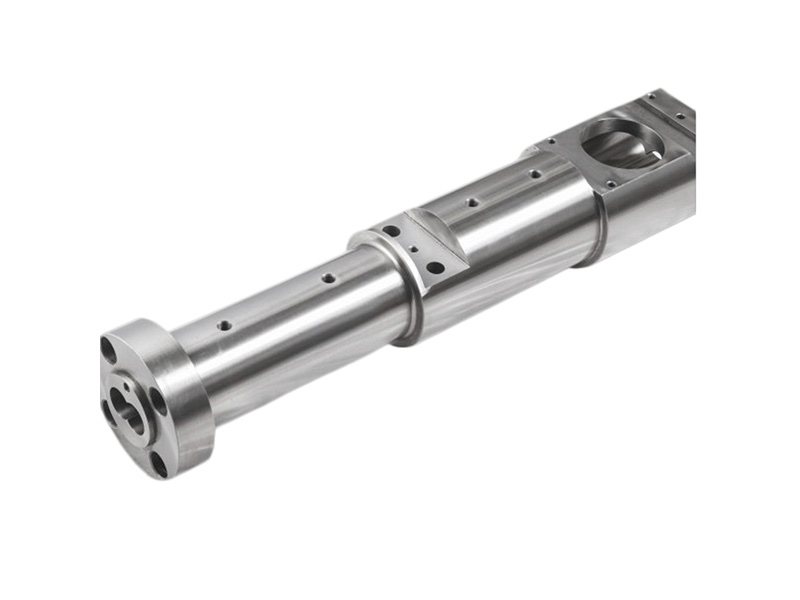

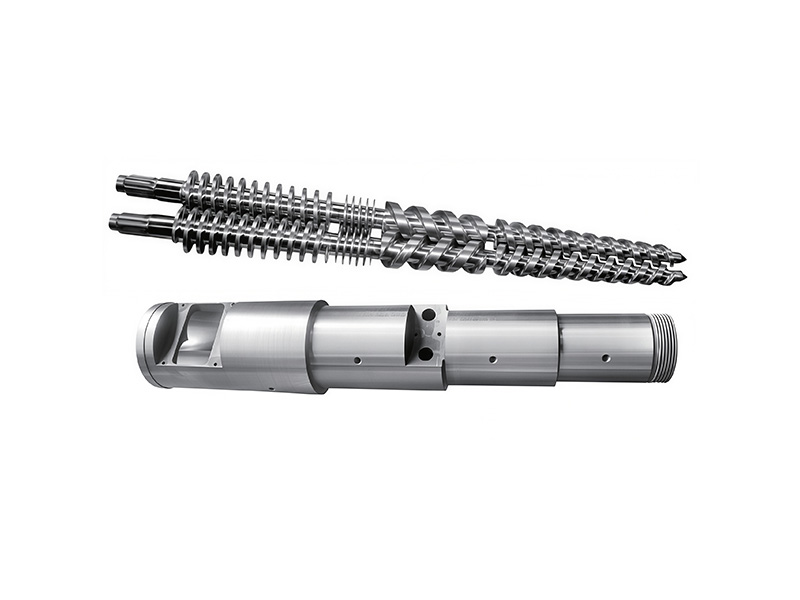

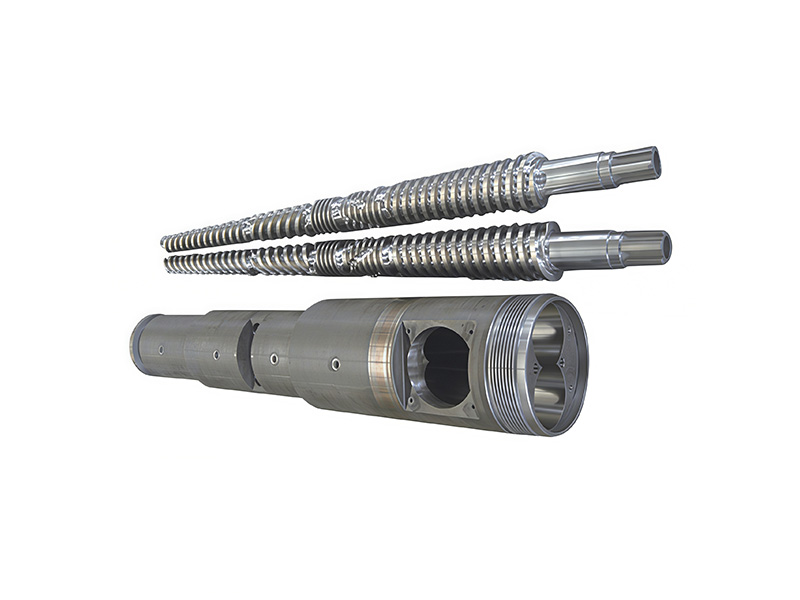

PIPLL is tailor-made for the plastic pelletizing industry. PIPLL targets the core requirements of high output, high plasticization and high stability in pelletizing production. Adopting PIPLL optimized flight design + bimetallic wear-resistant alloy technology, PIPLL significantly improves pelletizing efficiency and pellet quality. PIPLL is the ideal core component for various plastic pelletizing production lines.
Core Features
· PIPLL High-Output Special Flight Design: PIPLL adopts large lead and deep groove flight structure, increasing conveying capacity by more than 30%. PIPLL is specially optimized for continuous and high-load pelletizing production.
· PIPLL Enhanced Mixing & Plasticization System: PIPLL is equipped with multiple sets of barrier mixing elements for uniform and sufficient shearing. PIPLL ensures complete melting and homogenization of materials, resulting in high-density and bright-looking pellets.
· PIPLL Efficient Venting & Impurity Removal Structure: PIPLL reserves 1-2 sets of precisely positioned venting ports to quickly discharge moisture and volatiles. PIPLL eliminates defects such as bubbles and hollows in pellets.
· PIPLL Wear-Resistant & Durable Material Technology: PIPLL offers optional 38CrMoAlA nitrided steel or bimetallic wear-resistant alloy materials. PIPLL adapts to different filling levels and wear conditions with long service life.
· PIPLL Precise Temperature Control System: PIPLL is equipped with independent multi-zone heating and cooling system with temperature control accuracy of ±1℃. PIPLL can precisely control pelletizing temperature to ensure consistent pellet quality.
Core Application Fields
· PIPLL Pelletizing Special Conical Twin-Screw Barrel is suitable for PVC Powder Pelletizing and Cable Compound Pelletizing
· PIPLL Pelletizing Special Conical Twin-Screw Barrel is applicable to General Modified Plastic Pelletizing Production
· PIPLL Pelletizing Special Conical Twin-Screw Barrel can be used for Color Masterbatches and Functional Masterbatches Pelletizing
· PIPLL Pelletizing Special Conical Twin-Screw Barrel is compatible with Low-Filled Recycled Material Regeneration Pelletizing
· PIPLL Pelletizing Special Conical Twin-Screw Barrel is ideal for Extrusion Pelletizing Of Various Thermoplastics
PIPLL Product Advantages
· PIPLL Global Brand Compatibility: PIPLL is 100% compatible with mainstream extruders worldwide such as Bausano, Weber, Jinwei and Tongjia, etc
· PIPLL Fast Delivery Service: PIPLL keeps mainstream specifications such as Φ65/132, Φ80/173 and Φ92/188 regular in stock for PIPLL delivery.
· PIPLL Customization Capability: PIPLL can customize compression ratio, L/D ratio and mixing structure according to customer material characteristics and output requirements.
PIPLL Pelletizing vs. General-Purpose Conical Twin Screw Barrel: Performance
Performance Index | PIPLL Pelletizing Special screw Barrel | Ordinary General-Purpose Barrel |
Conveying Capacity | Increased by more than 30% | Standard level |
Plasticization Uniformity | Excellent, no under-plasticized material | Average, prone to uneven plasticization |
Pellet Density | High, bright appearance | Average, loose pellets |
Finished Product Yield | ≥98% | 85%-90% |
Standard Material | 38CrMoAlA nitrided steel | 38CrMoAlA nitrided steel |
Wear-Resistant Options | Bimetallic alloy / Special alloy | None |
Continuous Operation Time | 24 hours non-stop | 16-20 hours |
Service Life (Standard Working Conditions) | 24-36 months | 12-18 months |
Standard Specs of PIPLL Pelletizing Conical Twin Screw Barrel
PIPLL Product Model | L/D | Output | Motor Power | Core Application Scenarios |
PIPLL Φ45/100 | 18-20 | 50-150kg/h | 15-22kW | Small laboratory pelletizing, small-batch production |
PIPLL Φ55/120 | 18-22 | 100-300kg/h | 30-45kW | Small and medium-sized pelletizing production lines |
PIPLL Φ65/132 | 20-24 | 200-500kg/h | 45-75kW | PIPLL STAR product, General-Purpose Pelletizing Production Lines |
PIPLL Φ80/173 | 22-26 | 400-900kg/h | 75-110kW | Medium and large-sized pelletizing lines, cable compound pelletizing |
PIPLL Φ92/188 | 22-28 | 600-1300kg/h | 110-160kW | Large-sized pelletizing lines, high-output modified material pelletizing |
PIPLL Φ110/220 | 24-30 | 1000-2000kg/h | 160-250kW | Super large-scale pelletizing bases, industrial mass production |
